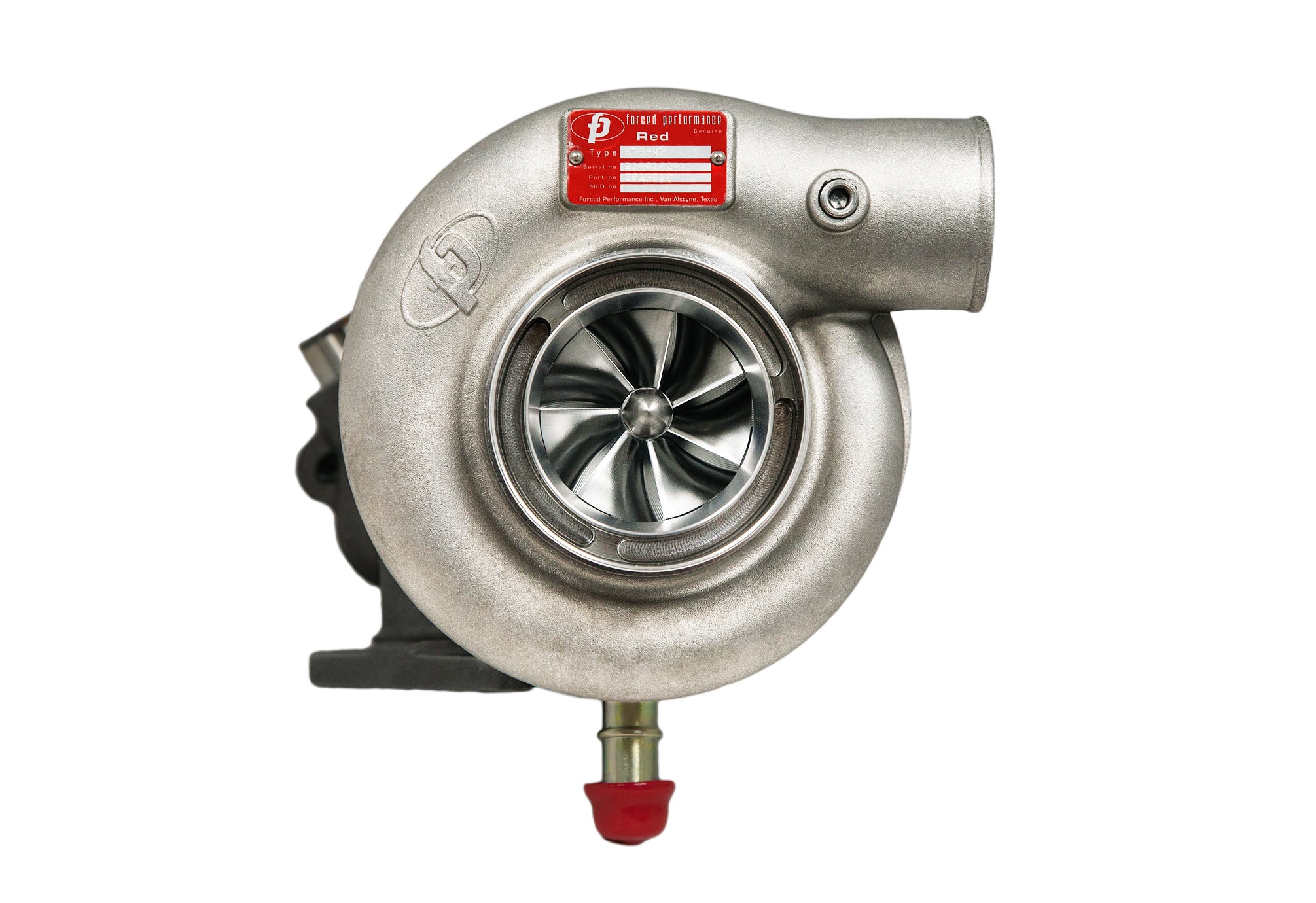

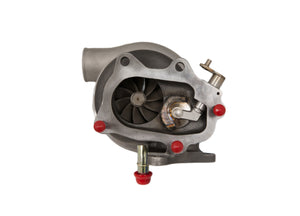

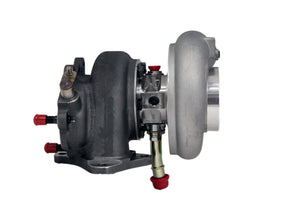

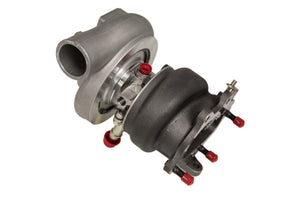

XR Red
- Compressor wheel - 79HTZ
- Flow rating - 65LB per minute
- CW Measurements - 57MM Inducer / 79MM Exducer
- TW Measurements - 67.7MM Inducer / 62.2MM Exducer
- Compressor Housing - 84MM FAP Cover
- Turbine Housing - FP 10CM Turbine Housing
- CHRA - Xona Rotor Ball Bearing

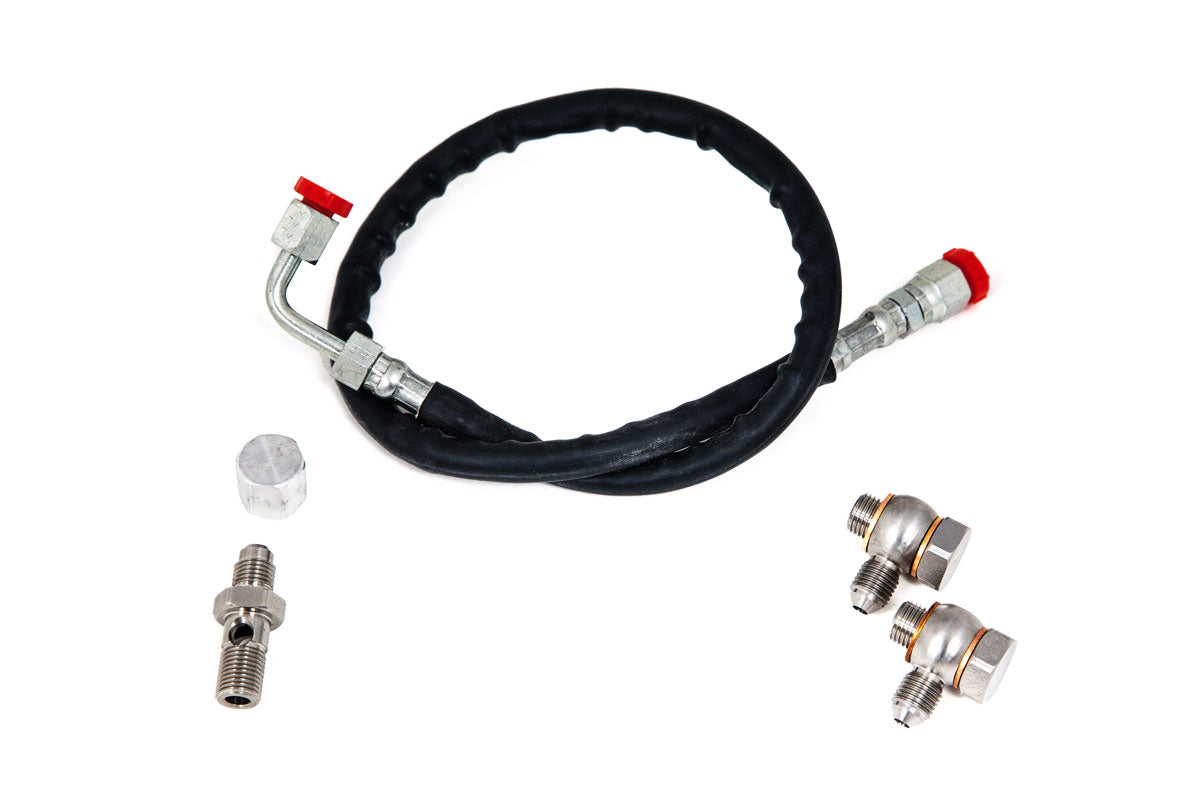

- Oil Line - Included
- Gasket Set - Included
Redesigned in 2018, the XR Red has our HTZ 79 compressor wheel in our 84MM Flow Advancement Port™ compressor cover to give you massive, reliable power.
In addition to the things you know and love about the journal bearing Red, this unit utilizes our Xona Ball Bearing CHRA for increased durability in situations where you might see low oil flow such as road racing or autocross applications. XR turbos have an M12x1.25 oil inlet in the bearing housing, allowing use of our Oil Feed line. Internal gate turbos are available with either the stock canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
