FP Black HTZ
- Compressor wheel - 82HTZ
- Flow rating - 71LB per minute
- CW Measurements - 59.1MM Inducer / 82MM Exducer
- TW Measurements - 67.3MM Inducer / 58.8MM Exducer
- Compressor Housing - 84MM FAP Cover
- Turbine Housing - FP 8CM or 10CM Turbine Housing
- CHRA - FP Journal Bearing

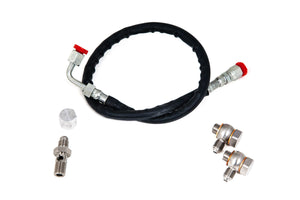

- Oil Line - Included
- Gasket Set - Included

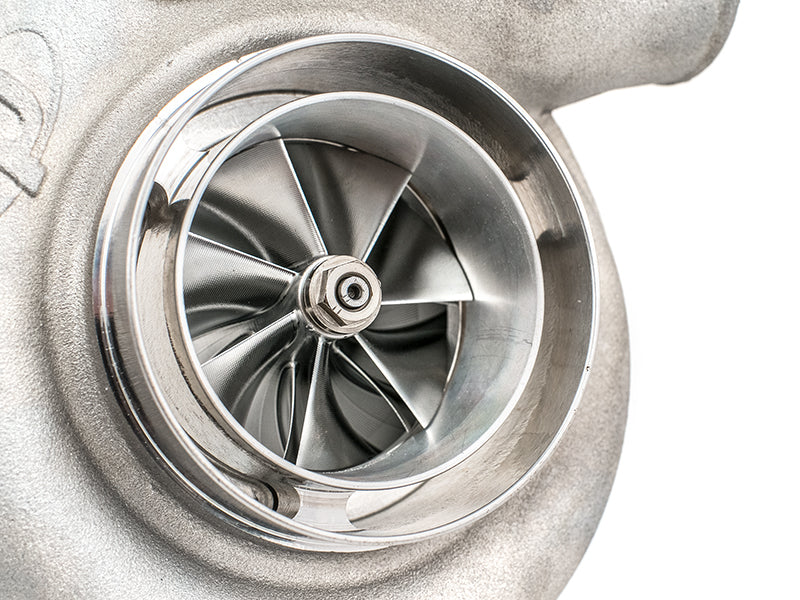

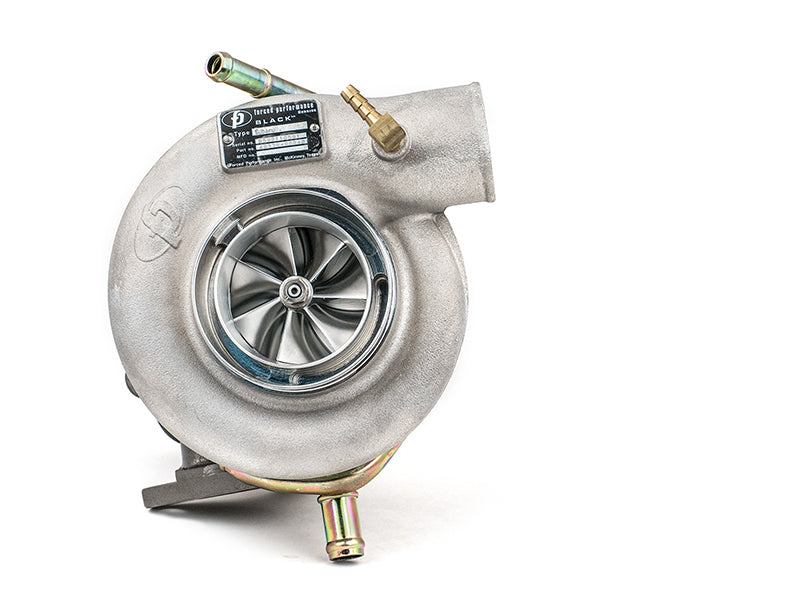

The FP Black™ turbocharger features the 82mm HTZ™ compressor section with our 84MM Flow Advancement Port™ compressor cover coupled to the 8cm2 or 10cm2 turbine section. The FP Black™ flows 71LB a minute and is capable of producing upwards of 575WHP. Internal gate turbos are available with either the stock canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.
Oil Feed Line Installation Instructions
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
