Oil Supply Line and gasket set included!
FP Green HTZ
- Compressor wheel - 76HTZ
- Flow rating - 61LB per minute
- CW Measurements - 54.8MM Inducer / 76MM Exducer
- TW Measurements - 67.3MM Inducer / 58.8MM Exducer
- Compressor Housing - 60MM Small Inlet or 84MM FAP Cover
- Turbine Housing - FP 8CM Turbine Housing
- CHRA - FP Journal Bearing
- Oil Line - Included

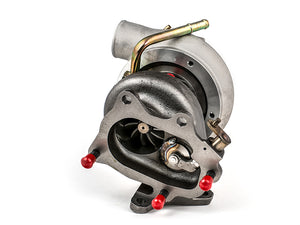

The FP Green™ turbocharger features the 76 HTZ™ compressor section with your choice of 60MM small inlet or the 84MM Flow Advancement Port™ compressor cover coupled to the 8cm2 turbine housing. The FP Green™ flows 61LB a minute and is capable of producing upwards of 500WHP. Internal gate turbos are available with either the stock canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.
Oil Feed Line Installation Instructions
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
