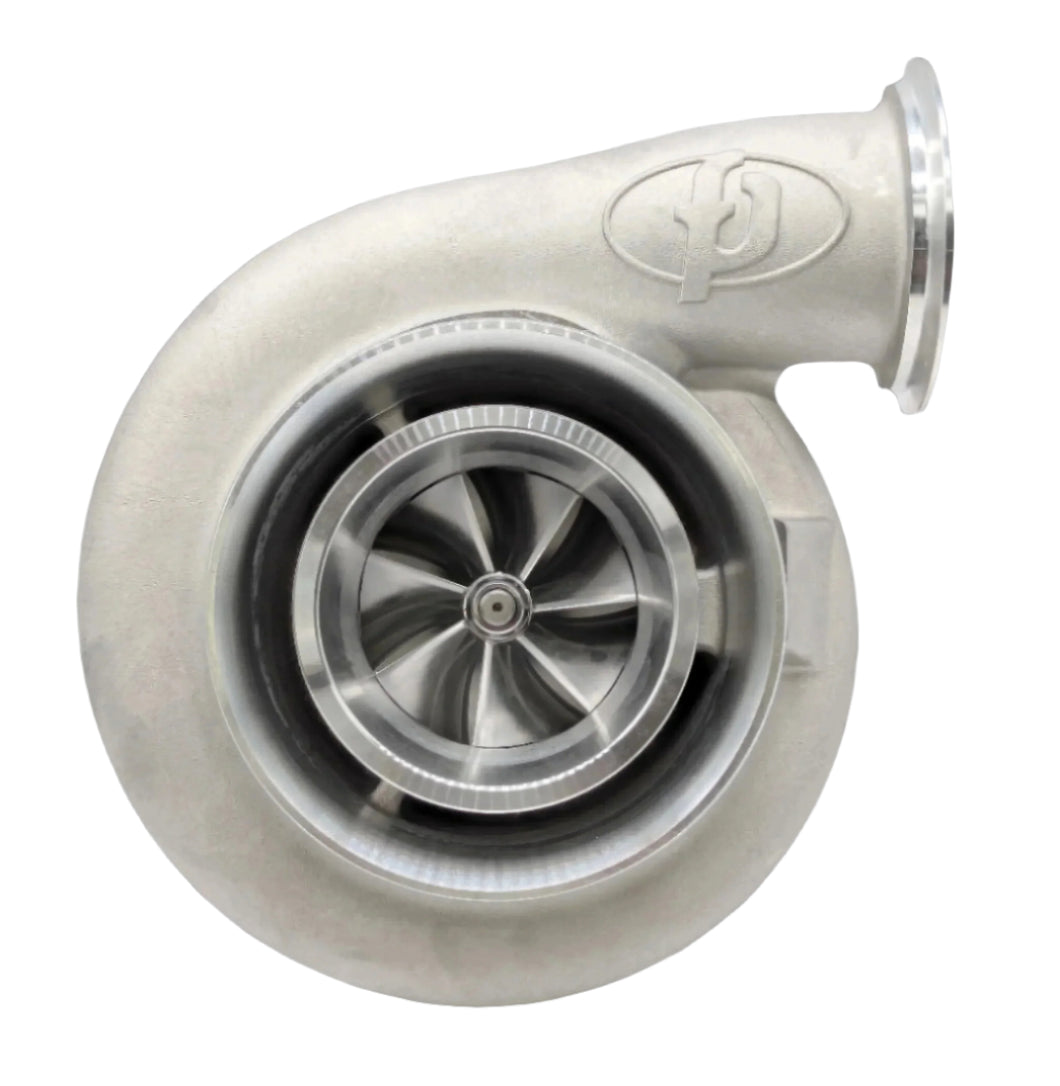

FP8082HTZ Ball Bearing Turbocharger
- Compressor wheel - 80HTZ
- Flow rating - 125+lb/min
- CW Measurements - 80mm Inducer / 111mm Exducer
- TW Measurements - 87mm Inducer / 82mm Exducer
- Compressor Housing - S400 Fitment Surge Ported Race Cover
- Turbine Housing - S400 87/82mm Compatible
- CHRA - Billet Aluminum Ball Bearing
The oil inlet is 1/4 NPT or 1.5" flanged. The optional downpipe flange/clamp are set up for a 4" downpipe. It has a conventional T4 S400 Spec outlet flange.
We recommend a restricted -4an feed line and a -12an drain for optimal oiling.
