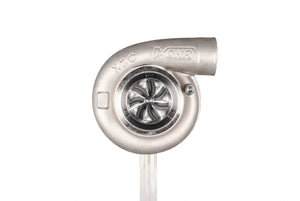

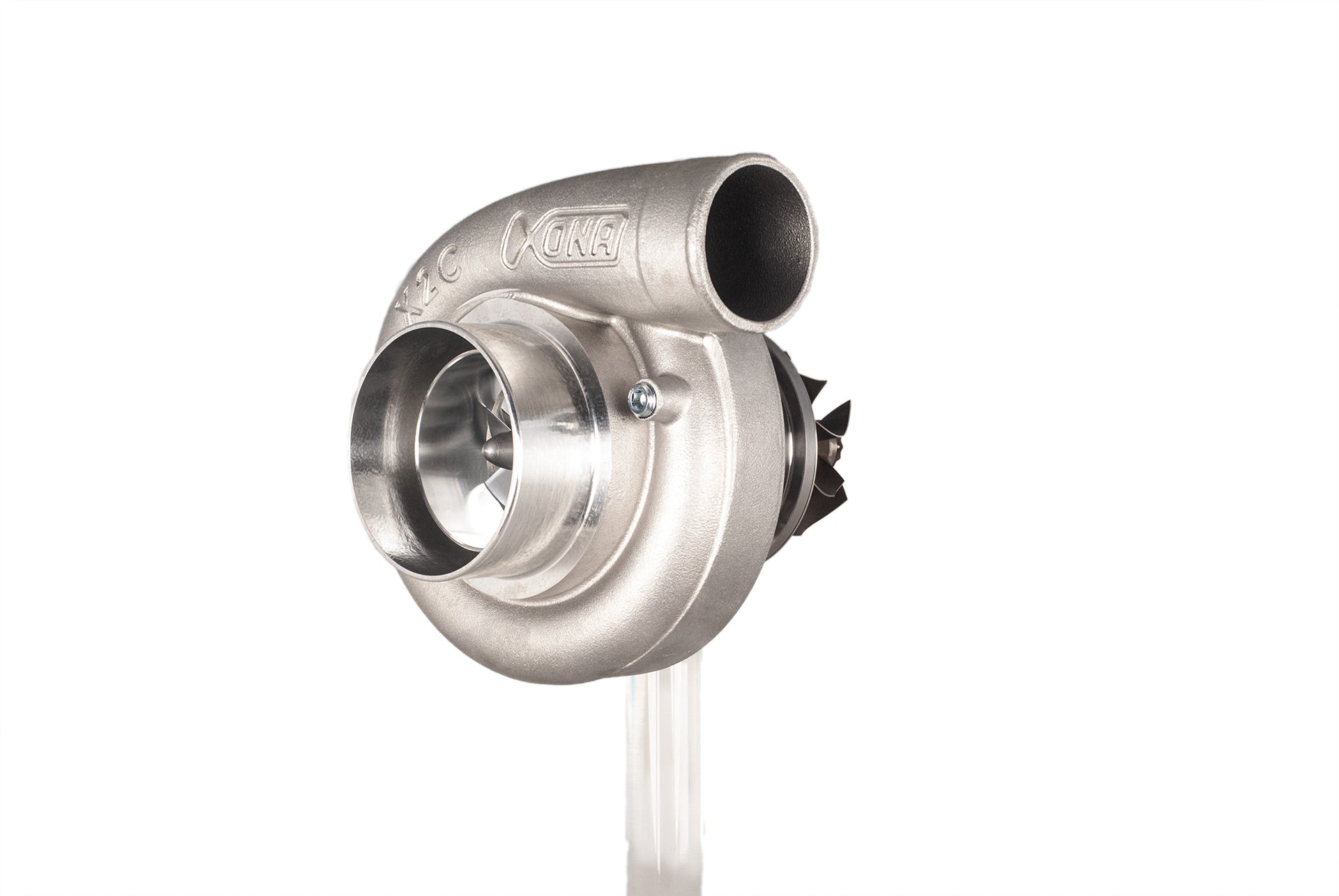

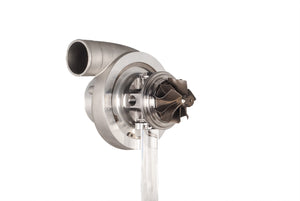

An update to the 5451S, the XRC5251S brings revised compressor aero, cover updates, and more power for the 52mm class.
- Compressor wheel - 52mm Inducer / 71mm Exducer.
- Turbine Outlet - 51mm
- 57lb/Minute Flow Rating
- 280-570HP Applications
- Variable preload angular contact bearings
- Twin gas ring seals at the compressor and turbine
- High strength, lightweight stainless steel center housing
- Full hydraulic damping of the rotating assembly
- Integrated oil contaminate filter
- M62 race material allows higher temperature operation
- Metallic bearing cages
Product Information
The revolutionary UHF™ aero XR51S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30% giving the fastest response we have ever observed at this power level.

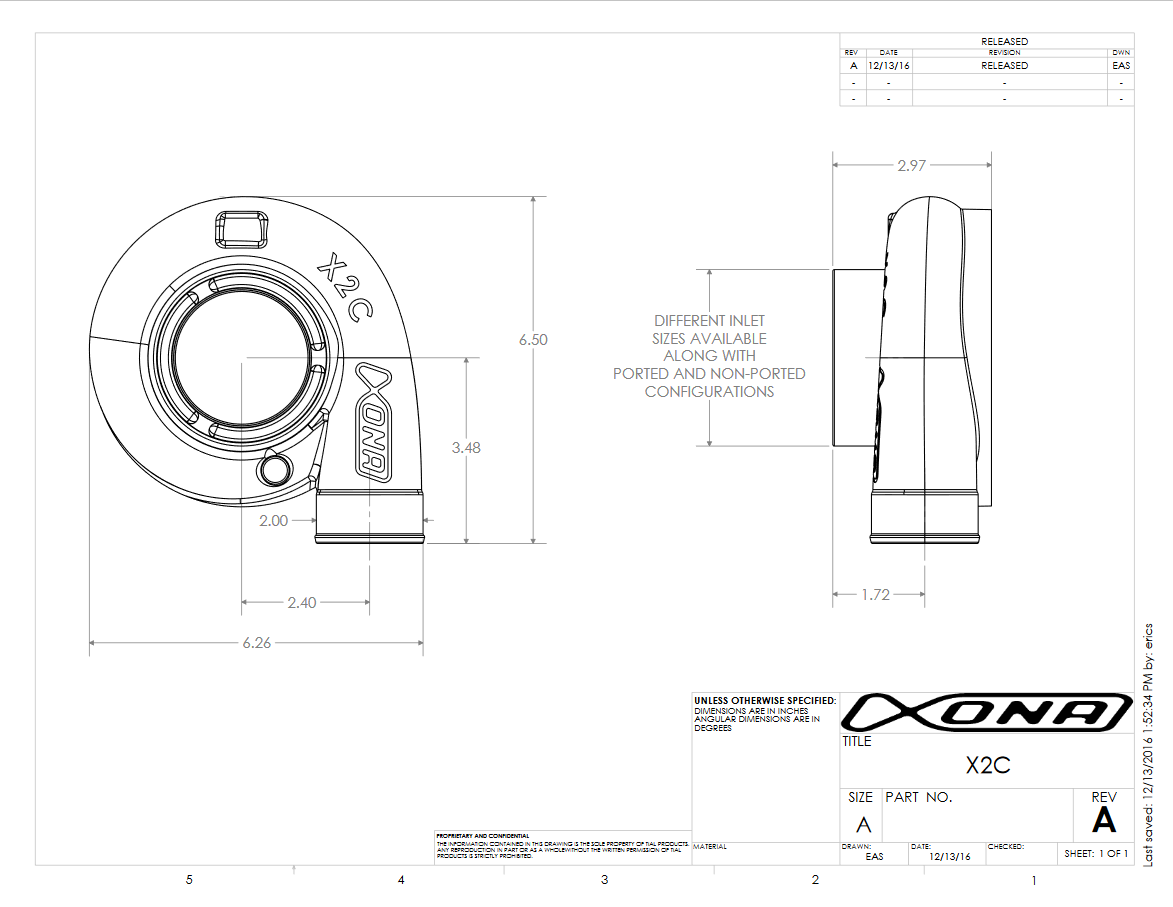

This turbocharger is available in an X2C compressor cover.
