Xona Rotor 61•57S Ball Bearing Turbocharger

Regular price
$1,589.00
Sale price
$1,589.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Compressor wheel - 55mm Inducer / 76mm Exducer.
  • Turbine Outlet - 57mm
  • 61lb/Minute Flow Rating
  • 300-650HP Applications
  • Variable preload angular contact bearings
  • Twin gas ring seals at the compressor and turbine
  • High strength, lightweight stainless steel center housing
  • Full hydraulic damping of the rotating assembly
  • Integrated oil contaminate filter
  • M62 race material allows higher temperature operation
  • Metallic bearing cages

Product Information

The revolutionary UHF aero XR57S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30% giving the fastest response we have ever observed at this power level.

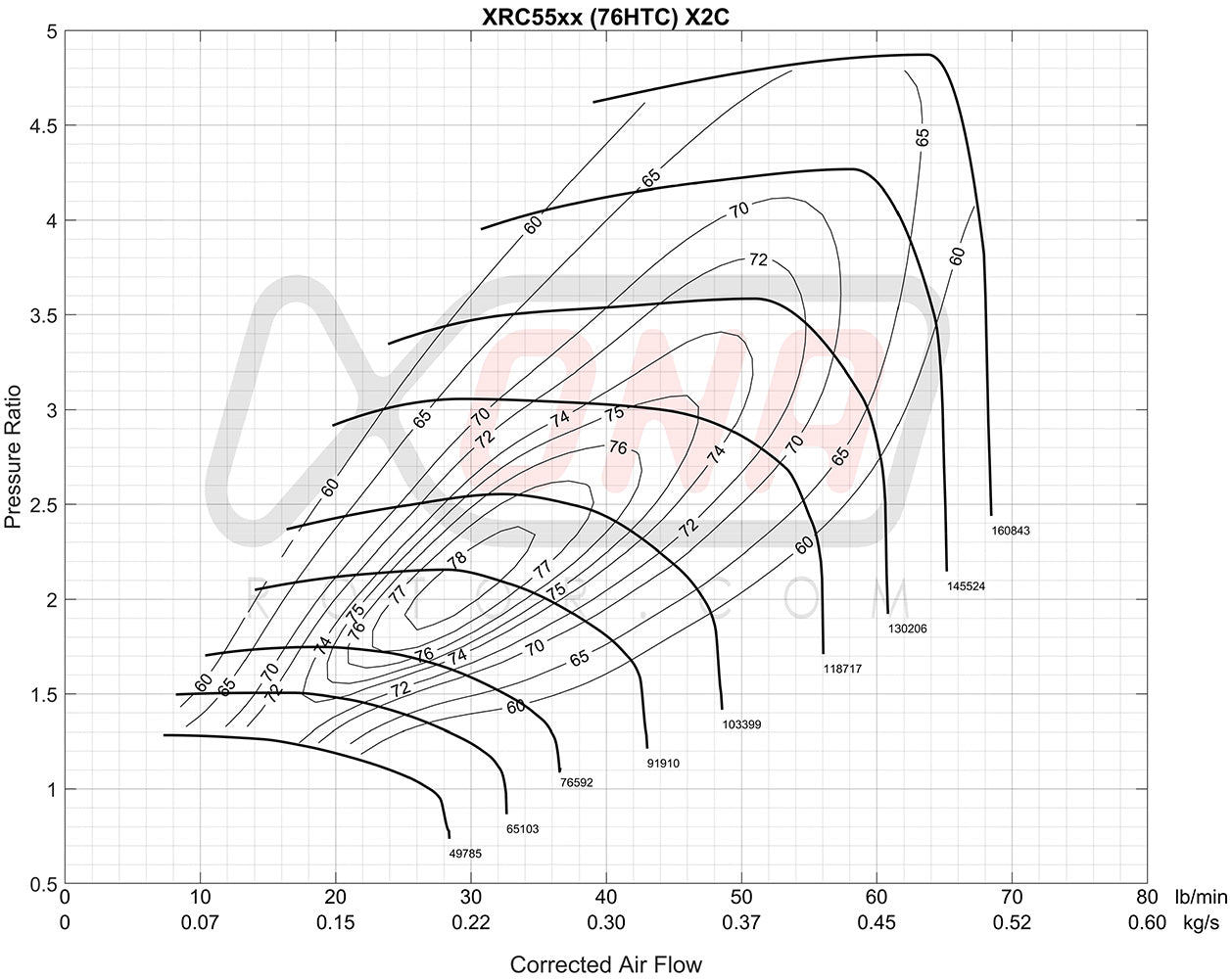

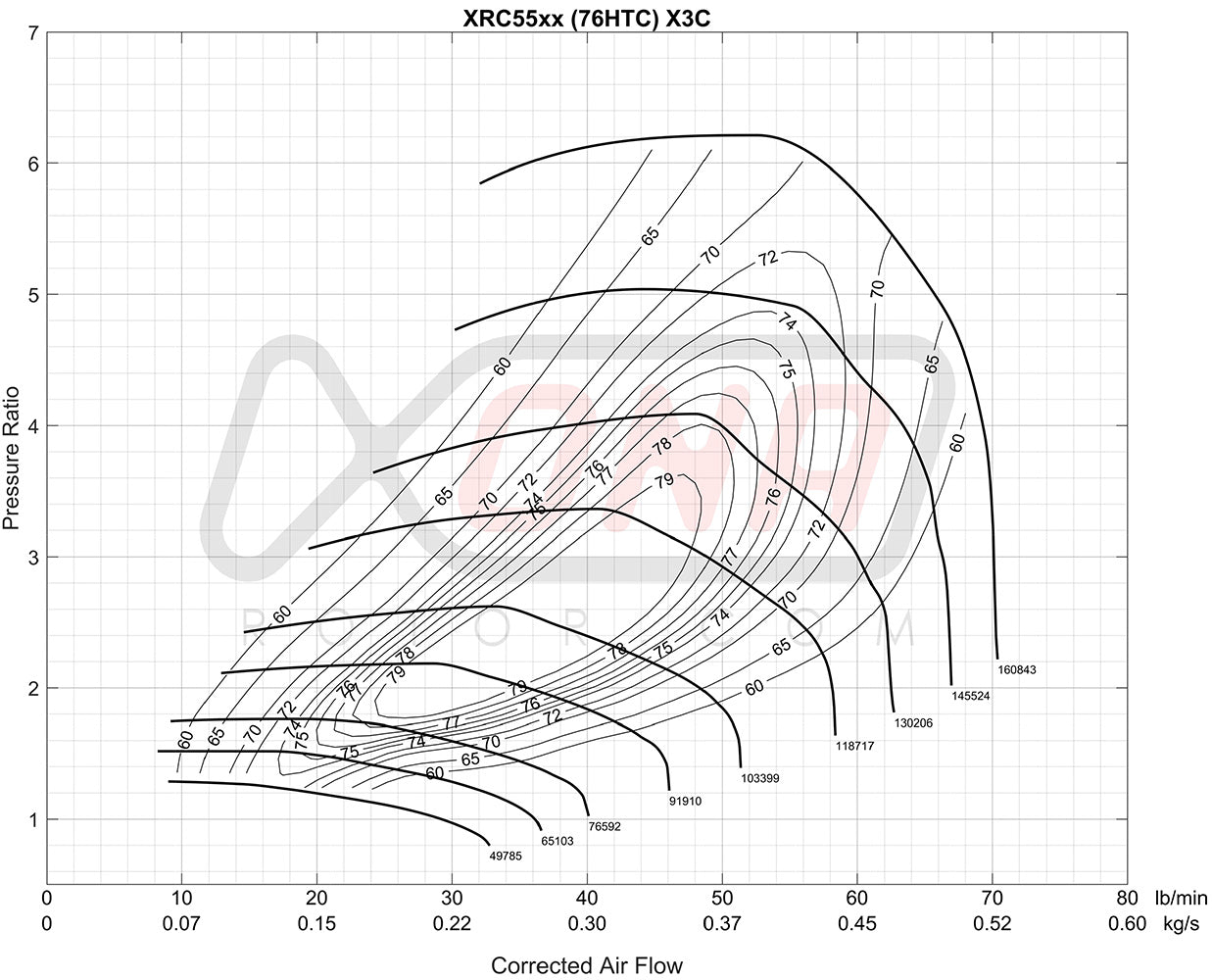

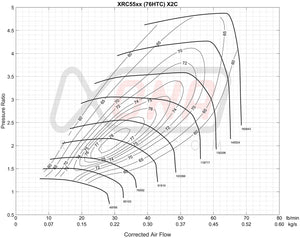

This turbocharger is available in either an X2C or X3C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
